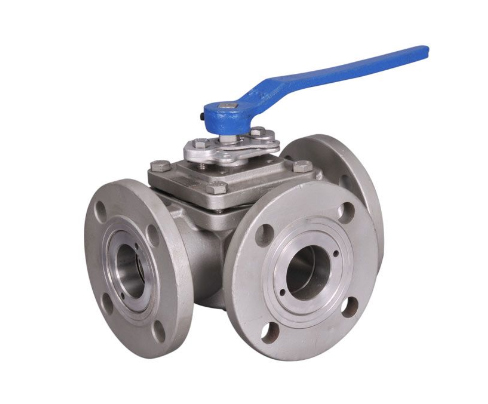

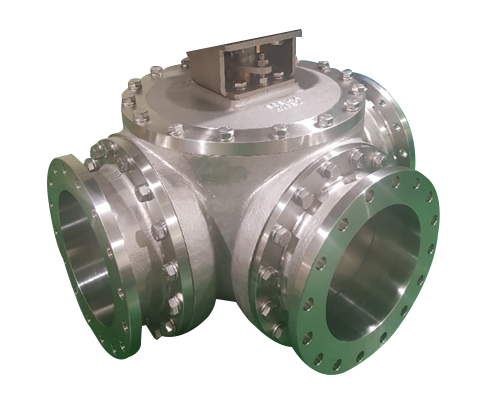

3-WAY BALL VALVE

늘 기술개발을 생각하며,
최고의 제품을 만들기 위해 노력하는 세원브이엔이
3-WAY BALL VALVE

사양

Model SOFT SW-PB3

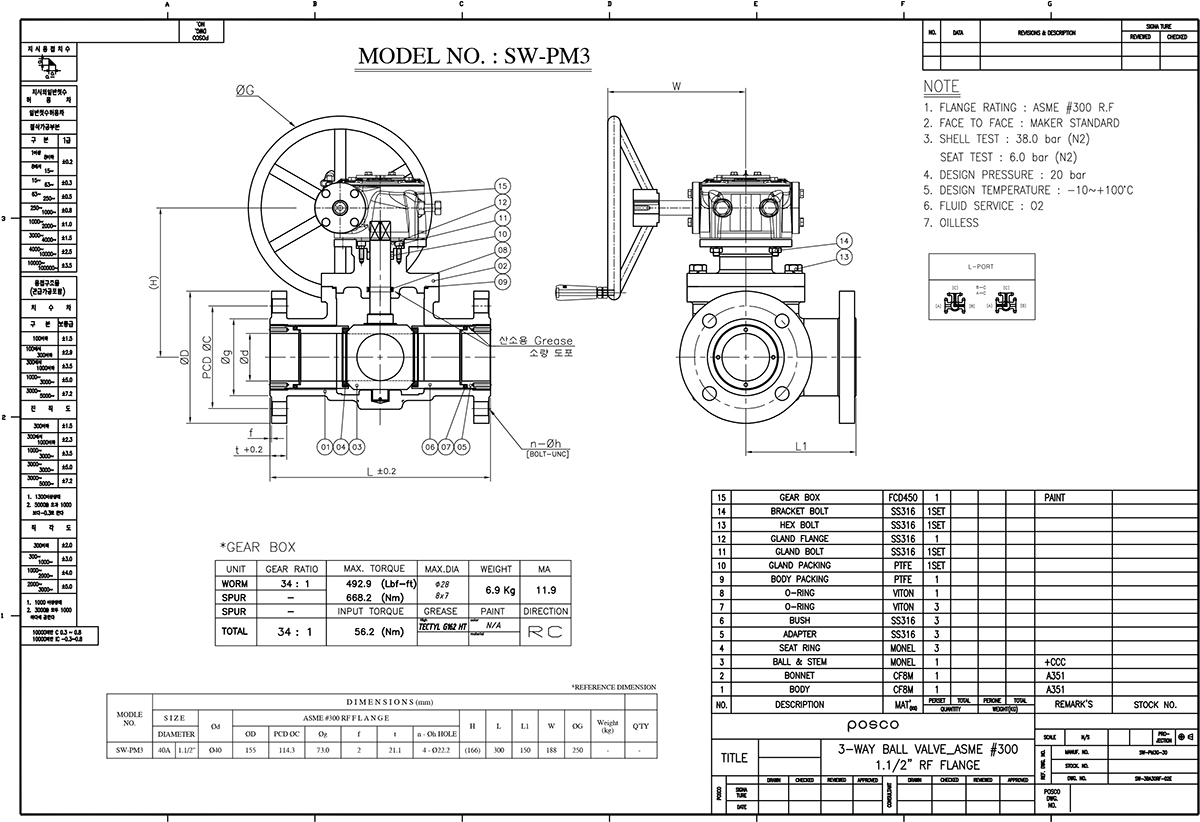

METAL SW-PM3
Working Fluid LIQUID, GAS, FO etc.
Pressure Rating JIS 10K,20K / ASME 150#, 300#
Working Temperature -20℃ ~ 550℃

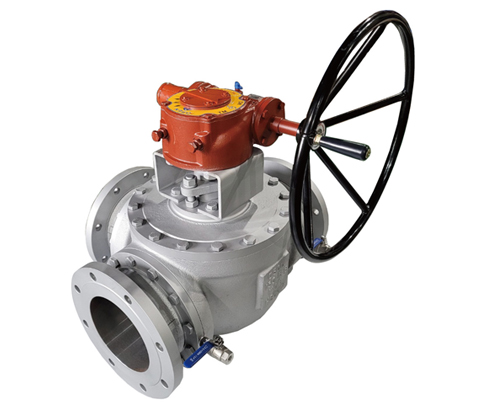

Type Lever Handle, Gear boxed or Pneumatic actuator
Connection JIS B 2220 RF/ ASME B 16.5 RF FLANGED
 Materials Body : Cast steel, Stainless Steel or Forged steel, MONEL
(A216-WCB, A351-CF8, A351-CF8M etc.)
Seat : PTFE, RTFE, PCTFE, Metal, MONEL
