CRYOGENIC BALL VALVE

늘 기술개발을 생각하며,
최고의 제품을 만들기 위해 노력하는 세원브이엔이

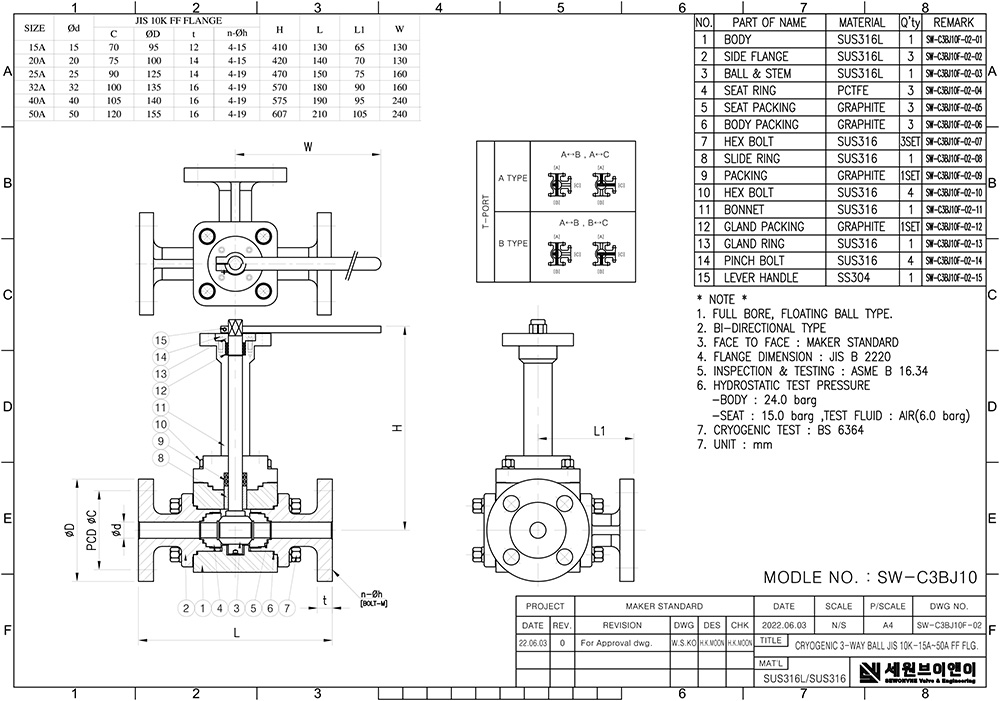

CRYOGENIC 3-WAY BALL VALVE

사양

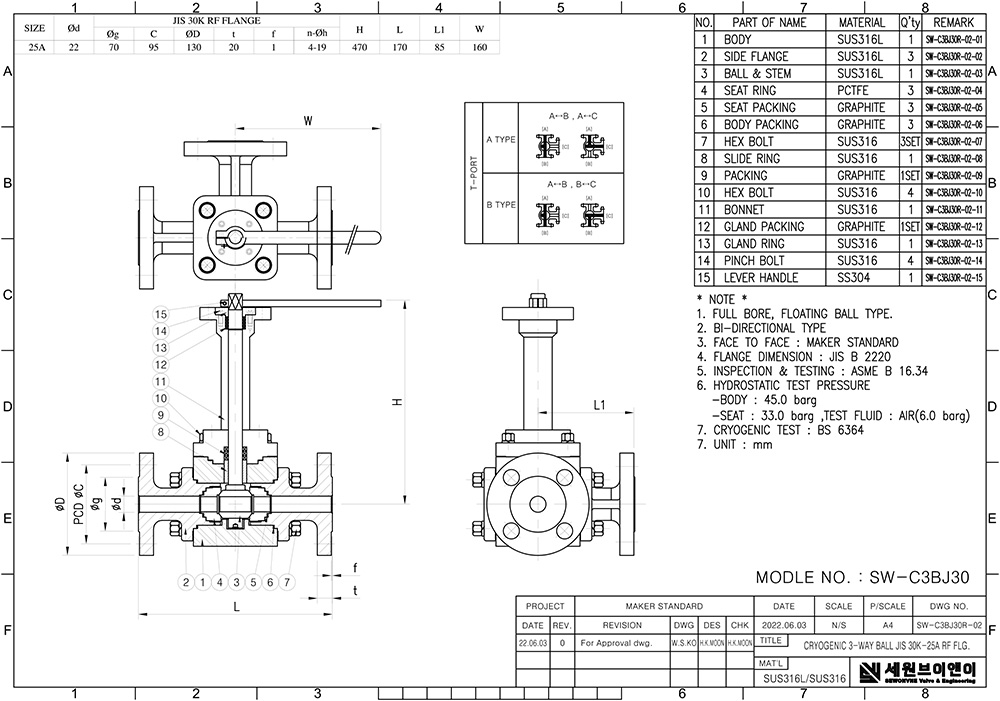

Model SW-C3BJ10/SW-C3BJ20/SW-C3BJ30
 Working Fluid Liquid argon etc.
Pressure Rating JIS 10K~30K / ASME #150~#600
Working Temperature -196℃ ~ 250℃
Type Gear boxed or Pneumatic actuator, Hand operated
Connection JIS B 2220 RF/ ASME RF FLANGED
 Materials Body : Stainless Steel or Forged steel
(SUS316L or SA182 equivalent)
Trim : PCTFE or Stainless Steel (SA182 grade or equivalent)

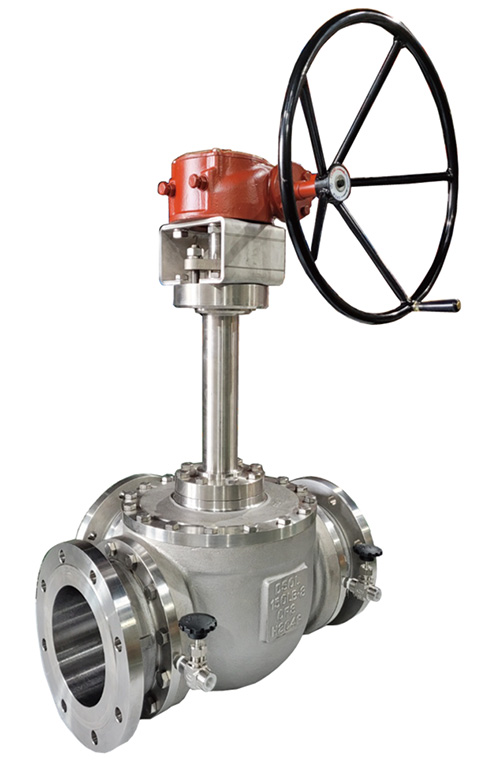

CRYOGENIC 3-WAY BALL VALVE

사양

Model SW-C3B
Working Fluid Liquid argon etc.
Pressure Rating JIS 10K~30K / ASME #150~#600
Working Temperature -196℃ ~ 250℃
Type Gear boxed or Pneumatic actuator, Hand operated
Connection JIS B 2220 RF/ ASME RF FLANGED
 Materials Body : Stainless Steel or Forged steel
 (SUS316L or SA182 equivalent)
Trim : PCTFE or Stainless Steel (SA182 grade or equivalent)

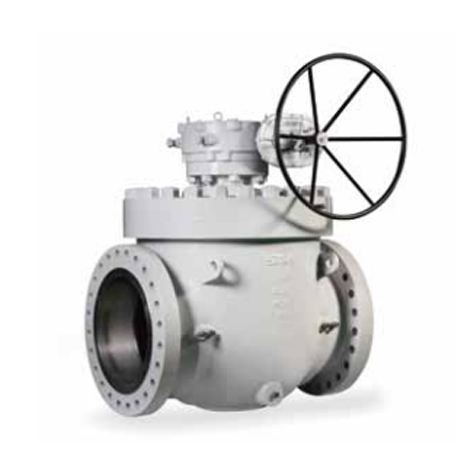

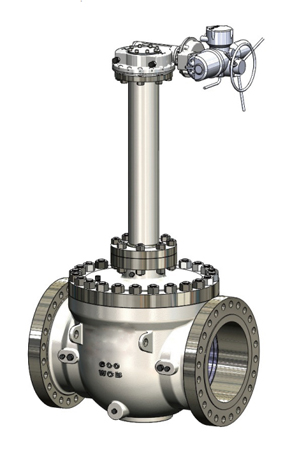

TOP ENTRY BALL VALVE

사양

Model SW-CR
Working Fluid LNG gas, Hydrogen gas etc.
Pressure Rating ASME #150~2500 / JIS 10K~350K
Working Temperature -196℃ ~ 200℃
Type Lever Handle, Gear boxed or Pneumatic actuator
Connection ASME RF FLANGED/ ASME BUTT WELDING
 Materials Body : Stainless Steel or Forged steel
(A351-CF3M or SA182 equivalent)
SEAT : PCTFE, METAL
