SEWONVNE

Valve & Engineering

PLUG VALVE

늘 기술개발을 생각하며,
최고의 제품을 만들기 위해 노력하는 세원브이엔이

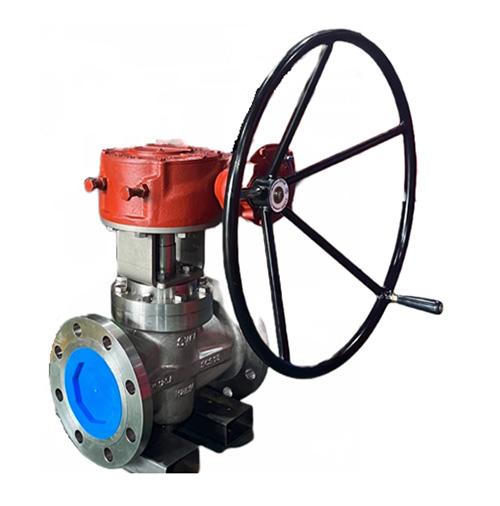

PLUG VALVE

사양

Model SW-MPV20RG
Working Fluid STEAM, LIQUID, GAS etc.
Pressure Rating JIS 10K~30K / ASME #150 ~ #600
Working Temperature -196℃ ~ 550℃
Type Gear boxed or Pneumatic actuator, Hand operated
Connection JIS B 2220 RF / ASME RF FLANGED
 Materials Body : Stainless Steel + Coating
  A216 WCB + Coating etc.
Trim : Stainless Steel + Coating
PLUG VALVE

사양

Model SW-MPV
Working Fluid STEAM, LIQUID, GAS etc.
Pressure Rating JIS 10K~30K / ASME #150~#600
Working Temperature -42℃ ~ 250℃
Type Gear boxed or Pneumatic actuator, Hand operated
Connection JIS B 2220 RF/ ASME RF FLANGED
 Materials Body : Stainless Steel + Coating
A216 WCB + Coating etc.
Trim : Stainless Steel + Coating
