Valve & Engineering
Model | SW-C3BJ10/SW-C3BJ20/SW-C3BJ30 |
---|---|
Working Fluid | Liquid argon etc. |
Pressure Rating | JIS 10K~30K / ASME #150~#600 |
Working Temperature | -196℃ ~ 250℃ |
Type | Gear boxed or Pneumatic actuator, Hand operated |
Connection | JIS B 2220 RF/ ASME RF FLANGED |
Materials | Body : Stainless Steel or Forged steel (SUS316L or SA182 equivalent) |
Trim : PCTFE or Stainless Steel (SA182 grade or equivalent) |

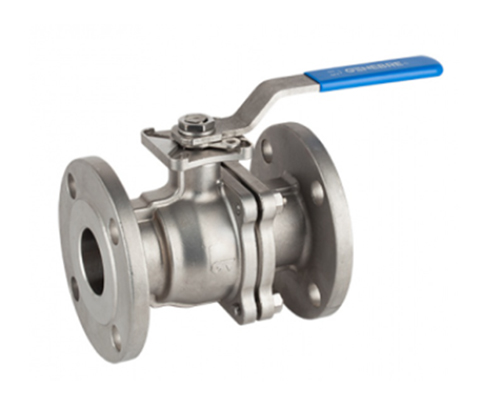

Model | SOFT | SW-B1/ SW-B2 |
---|---|---|
METAL | SW-M1/ SW-M2 | |
Working Fluid | STEM, WATER, GAS, LIQUID etc. | |
Pressure Rating | JIS B 2220 10K FF, 20K RF | |
Working Temperature | -20℃ ~ 550℃ | |
Type | Lever Handle, Gear boxed or Pneumatic actuator | |
Connection | JIS B 2220 FF/RF FLANGED | |
Materials | Body : Cast steel, Stainless Steel or Forged steel (A216-WCB, A351-CF8, A351-CF8M etc.) |
|

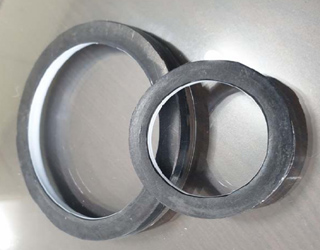

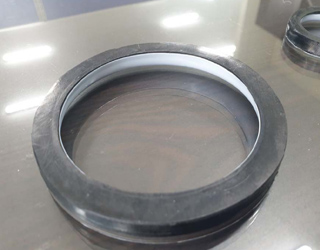

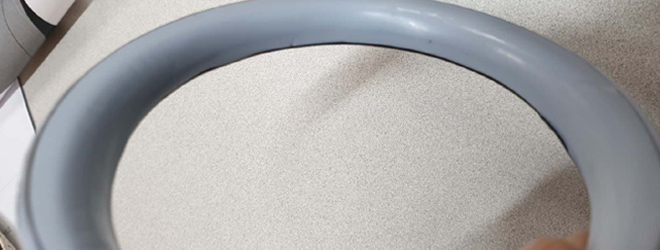

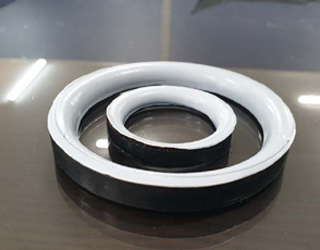

Seat : PTFE, RTFE, PCTFE, MR Seat, Metal |
Model | SOFT | SW-PB3 |
---|---|---|
METAL | SW-PM3 | |
Working Fluid | LIQUID, GAS, FO etc. | |
Pressure Rating | JIS 10K,20K / ASME 150#, 300# | |
Working Temperature | -20℃ ~ 550℃ | |
Type | Lever Handle, Gear boxed or Pneumatic actuator | |
Connection | JIS B 2220 RF/ ASME B 16.5 RF FLANGED | |
Materials | Body : Cast steel, Stainless Steel or Forged steel (A216-WCB, A351-CF8, A351-CF8M etc.) |
|
Seat : PTFE, RTFE, PCTFE, Metal |
Model | SW-P2B / SW-PM2B |
---|---|
Working Fluid | LIQUID , GAS, STEM, etc |
Pressure Rating | JIS 10K~30K / ASME #150~#300 |
Working Temperature | -20℃ ~ 250℃ |
Size | 15A~300A / 1/2" ~ 12" |
Type | Pneumatic actuator |
Connection | JIS B 2220 RF/ ASME RF FLANGED / SCREW |
Materials | Body : Carbon Steel, Stainless Steel or Forged steel (SCHP2, A351-CF3M or SA182 equivalent) |
Seat : PTFE, RTFE, Metal |

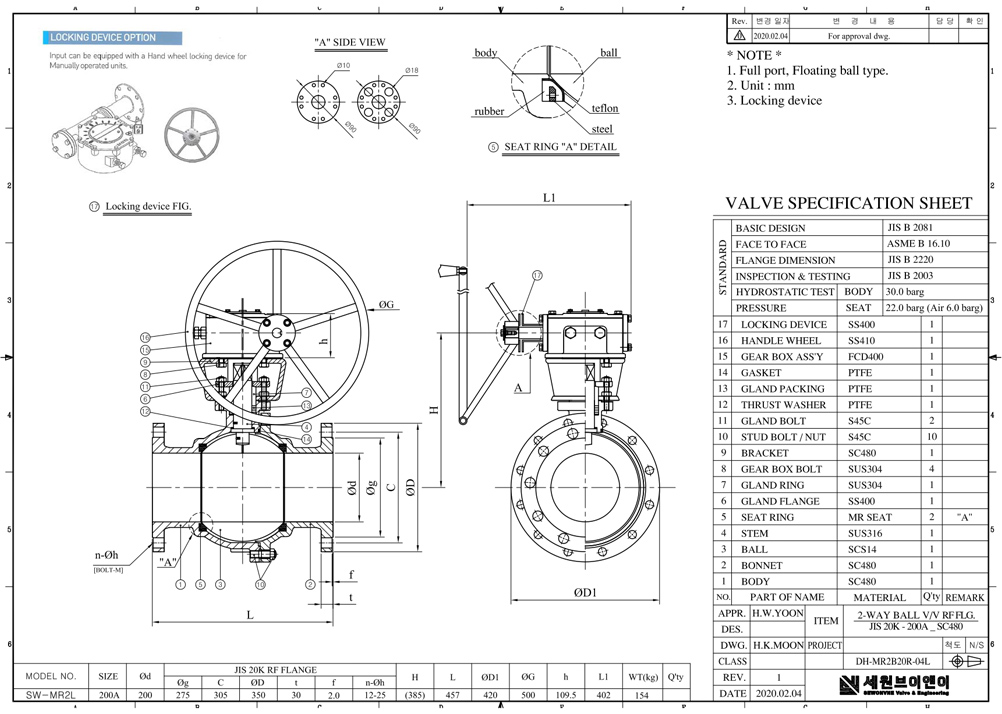

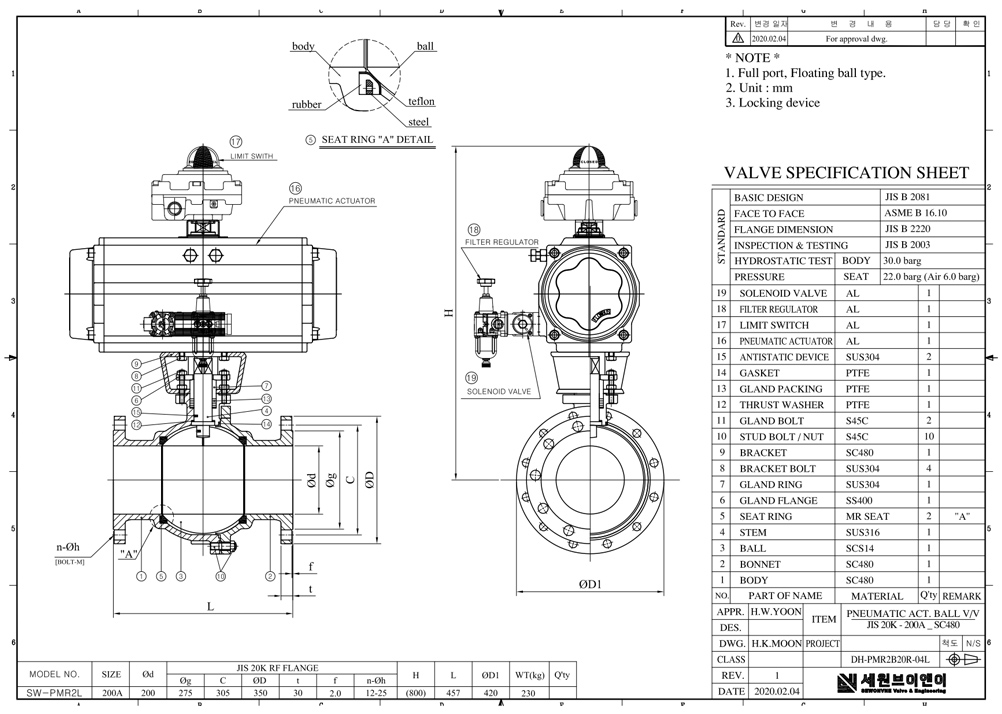

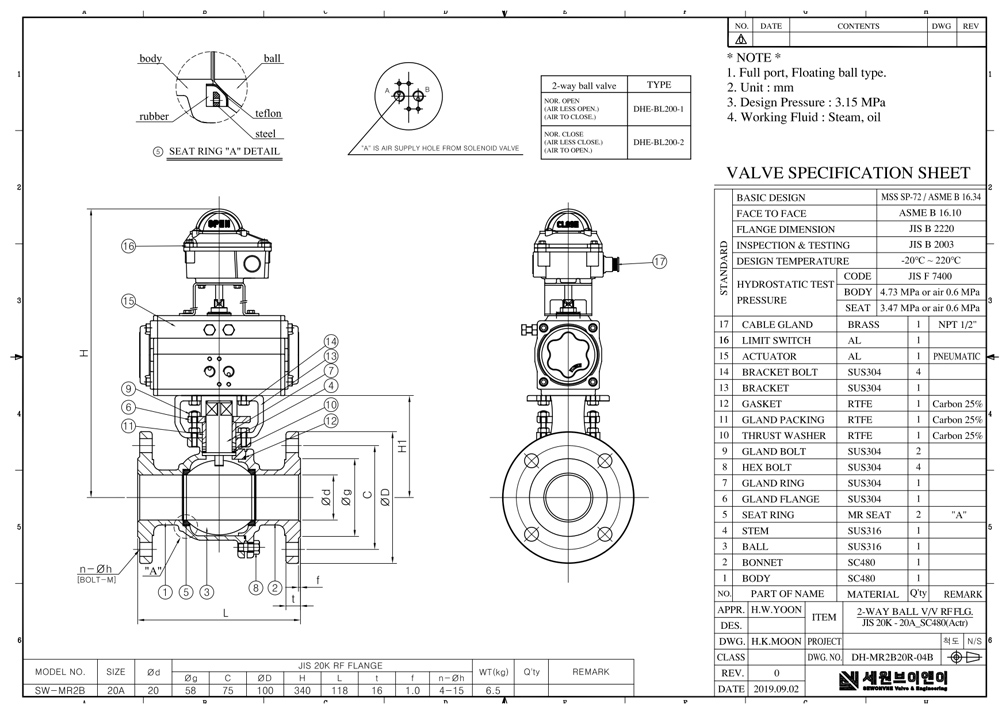

Model | SW-MR2B |
---|---|
Working Fluid | EXHAUST GAS etc. , COG GAS |
Pressure Rating | JIS 10K, 20K / ASME #150, #300 |
Working Temperature | -20℃ ~ 250℃ |
Size | 15A~300A / 1/2" ~ 12" |
Type | Pneumatic actuator |
Connection | JIS B 2220 RF/ ASME RF FLANGED / SCREW |
Materials | Body : Carbon Steel, Stainless Steel or Forged steel (SCHP2, A351-CF3M or SA182 equivalent) |
Seat : Rubber , teflon, steel |
Model | SOFT | SW-PB3 |
---|---|---|
METAL | SW-PM3 | |
Working Fluid | WATER, LIQUID, AIR etc. | |
Pressure Rating | JIS 10K,20K / ASME 150#, 300# | |
Working Temperature | -20℃ ~ 550℃ | |
Size | 15A~300A / 1/2" ~ 12" | |
Type | Pneumatic actuator | |
Connection | JIS B 2220 RF/ ASME RF FLANGED / SCREW | |
Materials | Body : Carbon Steel, Stainless Steel or Forged steel (SCHP2, A351-CF3M or SA182 equivalent) |
|
Seat : PTFE, RTFE, Metal |

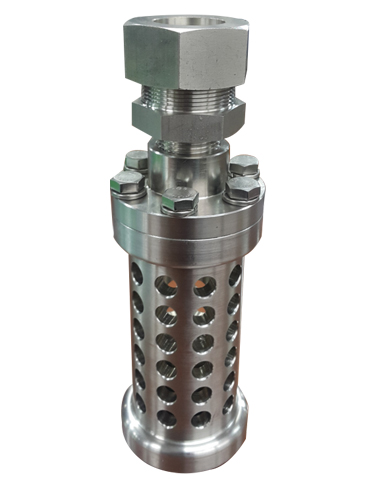

Model | SW-FL4 |
---|---|
Working Fluid | SEA WATER |
Pressure Rating | PN 40 |
Working Temperature | -20℃ ~ 250℃ |
Type | FLOATING TYPE |
Connection | SCREW / JIS FF/ ASME RF /PN RF FLG |
Materials | Body : ALBC, Stainless Steel or Forged steel (B148-C95800, A351-CF3M or SA182 equivalent) |
Trim : Stainless Steel (SA182 grade or equivalent) |
Model | SW-CR |
---|---|
Working Fluid | LNG gas, Hydrogen gas etc. |
Pressure Rating | ASME #150~2500 / JIS 10K~350K |
Working Temperature | -196℃ ~ 200℃ |
Type | Lever Handle, Gear boxed or Pneumatic actuator |
Connection | ASME RF FLANGED/ ASME BUTT WELDING |
Materials | Body : Stainless Steel or Forged steel (A351-CF3M or SA182 equivalent) |
SEAT : PCTFE, METAL |
Model | SW-HTB |
---|---|
Working Fluid | EXHAUST GAS etc. |
Pressure Rating | ASME #2500 / JIS 350K |
Working Temperature | -18℃ ~ 550℃ |
Type | Lever Handle, Gear boxed or Pneumatic actuator |
Connection | ASME #150~2500 / ASME BUTT WELDING |
Materials | Body : Carbon Steel, Stainless Steel or Forged steel (A216-WCB, A351-CF3M or SA182 equivalent) |
SEAT : PEEK, METAL |

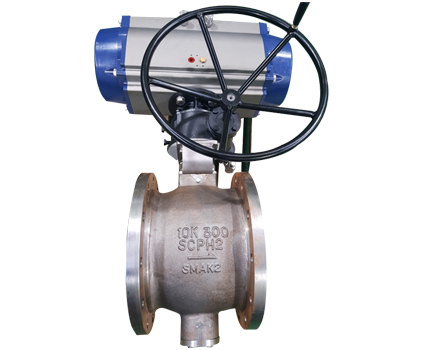

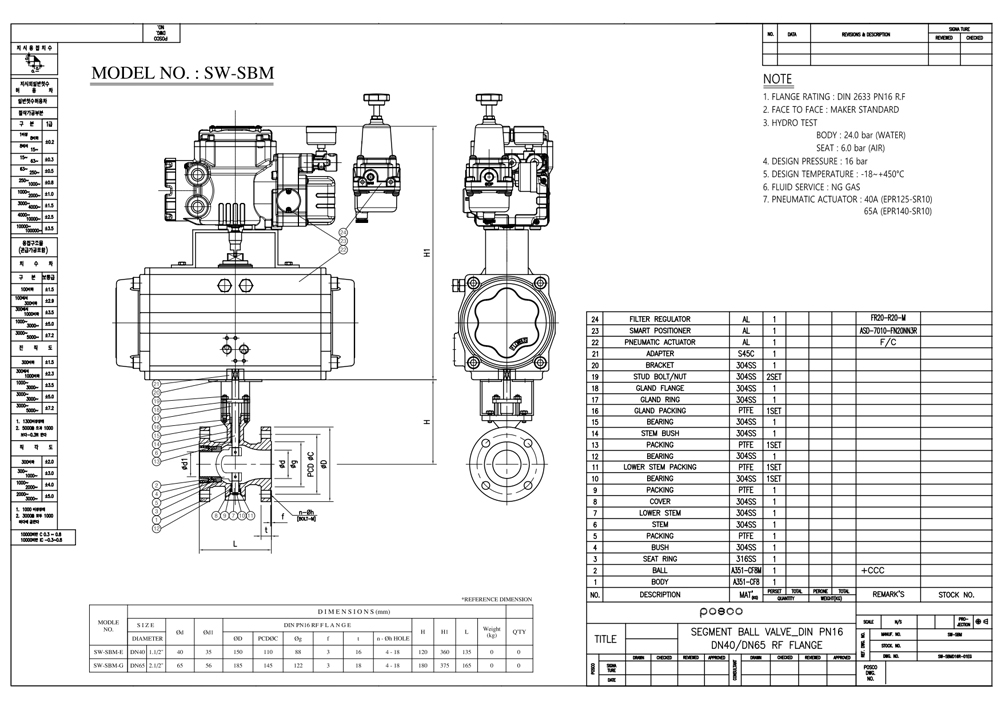

Model | SOFT | SW-SB |
---|---|---|
METAL | SW-SBM | |
Working Fluid | COG GAS, SLUDGE etc. | |
Pressure Rating | JIS 10K, 20K / #150, #300 | |
Working Temperature | -20℃ ~ 550℃ | |
Size | '50A~300A / 2"~12" | |
Type | Gear boxed or Pneumatic actuator, Hand operated | |
Connection | JIS B 2220 FF,RF / ASME #150,300 RF FLANGED | |
Materials | Body : Cast steel, Stainless Steel or Forged steel (SCPH2, A351-CF8, A351-CF8M etc.) |
|
Seat : PTFE, RTFE,MR Seat, PCTFE, Metal |
Model | SW-HP2S |
---|---|
Working Fluid | FO. etc. |
Pressure Rating | 3000 psi / 6000 psi |
Working Temperature | -20℃ ~ 250℃ |
Type | Lever Handle type, Gear type |
Connection | SAE FLANGE (CODE61,62) |
Materials | Body : Carbon Steel, Stainless Steel or Forged steel etc. (S20C, A351-CF3M or SA182 equivalent) |
Seat : POM |
Model | SW-MPV20RG |
---|---|
Working Fluid | STEAM, LIQUID, GAS etc. |
Pressure Rating | JIS 10K~30K / ASME #150 ~ #600 |
Working Temperature | -196℃ ~ 550℃ |
Type | Gear boxed or Pneumatic actuator, Hand operated |
Connection | JIS B 2220 RF / ASME RF FLANGED |
Materials | Body : Stainless Steel + Coating A216 WCB + Coating etc. |
Trim : Stainless Steel + Coating |

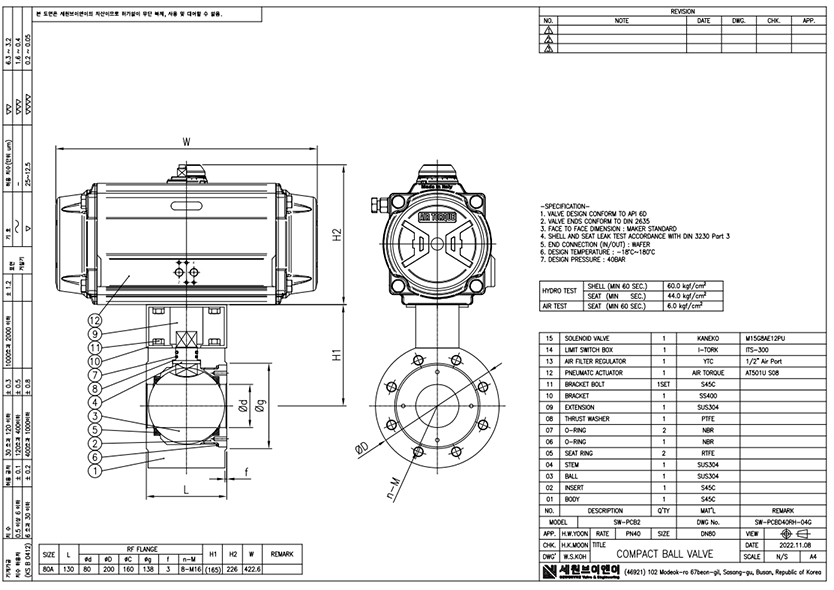

Model | SW-2CB / SW-PCB |
---|---|
Working Fluid | STEM, WATER, GAS, LIQUID etc. |
Pressure Rating | JIS 10K~30K / ASME #150~#600 / PN6~40 |
Working Temperature | -18℃ ~ 180℃ |
Type | Gear boxed or Pneumatic actuator, Hand operated |
Connection | JIS B 2220 RF FLG. / ASME RF FLG. / PN RF FLG. |
Materials | Body : Stainless Steel, CS, A182 F316 |
Trim : Stainless Steel / PTFE, RTFE |
Model | SW-TBVF-01 |
---|---|
Working Fluid | Sludge |
Pressure Rating | JIS 10K~30K / ASME #150~#600 |
Working Temperature | -18℃ ~ 180℃ |
Type | Gear boxed or Pneumatic actuator, Hand operated |
Connection | JIS B 2220 RF/ ASME RF FLANGED |
Materials | Body : Stainless Steel, CS, A182 F316 |
Trim : Stainless Steel / PTFE, RTFE |
Model | SW-MPV |
---|---|
Working Fluid | STEAM, LIQUID, GAS etc. |
Pressure Rating | JIS 10K~30K / ASME #150~#600 |
Working Temperature | -42℃ ~ 250℃ |
Type | Gear boxed or Pneumatic actuator, Hand operated |
Connection | JIS B 2220 RF/ ASME RF FLANGED |
Materials | Body : Stainless Steel + Coating A216 WCB + Coating etc. |
Trim : Stainless Steel + Coating |
Model | SW-C3B |
---|---|
Working Fluid | Liquid argon etc. |
Pressure Rating | JIS 10K~30K / ASME #150~#600 |
Working Temperature | -196℃ ~ 250℃ |
Type | Gear boxed or Pneumatic actuator, Hand operated |
Connection | JIS B 2220 RF/ ASME RF FLANGED |
Materials | Body : Stainless Steel or Forged steel (SUS316L or SA182 equivalent) |
Trim : PCTFE or Stainless Steel (SA182 grade or equivalent) |
